Light Source

​

Metal-Halide, LED and Laser

​

PhotoFluor® LM-75 ; Metal-Halide Light Source

​

• World’s first direct-mounted metal-halide  light source for fluorescence imaging

• NO Liquid Light Guide Required

• More power where it counts

• Wide output spectrum similar to Hg

• Prealigned lamp no user alignment

• Lamp life up to 2000hrs >7x mercury

• Built-in ballast=no external controller less bench  space required

• Full output spectrum available 340 - 800nm

• Low upfront cost +  long lamp life + no LLG=lower overall  cost of ownership

​

​

MIRA light engine® : Compact Solid State Light Source

​

• Sources : 4 solid-state sources: Violet (V), Cyan (C), Green (G), and Red (R). White light output via simultaneous

V,G,C,R output

• Output Spectrum Shown in graphic representation below

​

​

​

​

​

​

​

​

​

​

​

​

​

• Output Power ~ 800 mW total power

• Light Delivery Direct mount to epifl uorescence illumination port of major brand microscopes

• Control Interface

Side-panel knobs for manual on/o , output color and intensity selection. Same control functions
also accessible via optional control pod console

• Control Ports

(1) Rear panel USB port for control pod.
(2) Electronic on/o gate (>3.3 V/<1.5 V DC) via rear panel BNC

• Speed On/off  gating (single colors or simultaneous white output) up to 1 kHz

​



LED Light Source for Stereo-Microscopy, Macro-Photography and Machine Vision

​

• Wavelength options: cool white, neutral white, warm white, single color - 365, 385, 395, 405, 448, 457, 460, 470, 505, 523, 567, 590, 617, 623, 660, 740, 850, 940 nm peak. More wavelengths available upon request.

• Can be used for fluorescence illumination with stereo-microscopes, for macro photography, or in machine vision systems.

• Collimator has aspheric condenser lens: Ø30mm, FL 26.5mm, NA 0.522 and accommodates Ø25mm or Ø30mm excitation filters. Excitation filters are available from several manufacturers.

• Emission filter holder for 2"x2" square filters. Emission filters are available from several manufacturers.

• Adjustable focus.

• Manually variable intensity from zero to full.

• TTL input for instant on-off switching (BNC connector).

• Extra quiet fan for cooler operation, higher and more stable light output.





LDI / LDI-WF : Laser Diode Illuminator

​

• Number of laser lines : 6 or 7 lines, depending on the model

• Laser wavelengths    LDI-6 – 405/445/470/520/528/640

                                                LDI-7 – 405/445/470/520/528/555/640

• Output power    Out of 400 micron, 0.22 NA fiber

405 nm –  300 mW | 445 nm –  1000 mW | 470 nm –  1000 mW

520 nm –  500 mW | 528 nm –  500 mW   | 555 nm –  1000 mW | 640 nm –  500 mW

• Lifetime    20,000 hrs – 2 year warranty

• Stability    <1% RMS (at 100% laser power)

​

​

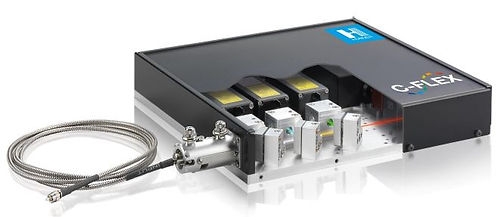

Laser Combiner

​

C-FLEX is a flexible and compact laser combiner that allows for integration of up to six different wavelengths on a single platform, modulation options for all wavelengths, and configuration with either free beam or fiber coupled beam delivery.

C-FLEX is compatible with lasers from the Cobolt 06-01, 08-01 and 04-01 Series.

​

Cobolt 04-01 Series
Powerful, single frequency CW diode pumped lasers:
457 nm – 660 nm up to 400 mW*

​

Cobolt 06-01 Series
Plug & play modulatable lasers:
405 nm – 660 nm up to 300 mW

​

Cobolt 08-01 Series
Compact narrow linewidth lasers:
405 nm – 660 nm up to 200mW*

​

​

Hardware Synchronization between Camera and other devices(Laser, LED) by TTL

​
